Loren Cavitation Air Flotation Machine Aerator is An Idea Suspend Solid Water Separation Machine Esp. For oil water separation
Its High Speed Motor will Rotate with High Speed Impeller with Water to Generate Negative Pressure by naturally Absorbing the Normal Air in The Outside Atmosphere thus to generate DN40-80 um Micro Bubble (HRT: 15-30 Seconds ) which will take the suspend solid and oil lifting on the water surface to form Layer Sludge or Scum being Drain Out By Matching Skimmer or Scraper, While the below water will remain clean for next process dealing
Induced Air Flotation Aerator (IAF Aerator)
Cavitation Air Flotation (CAF) Aerator for Waste Water Treatment;
CAF Fuel Oil Dispenser Aeration System

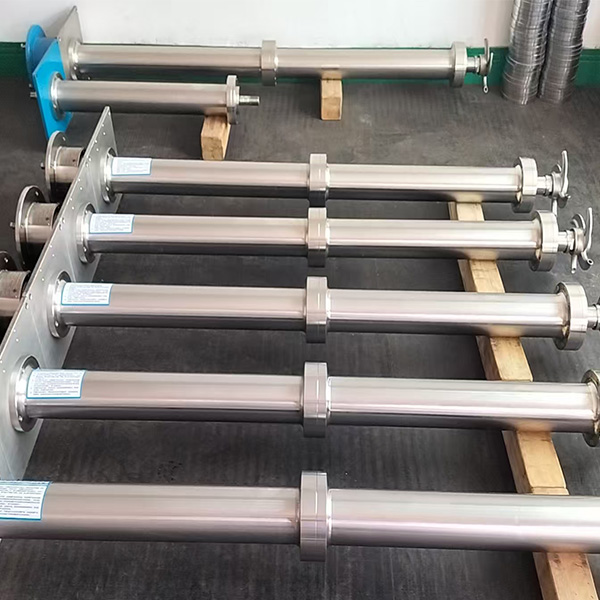

20260626 Loren LA-2000 CAF IAF Aerators five sets Finished views 2
Definition and Working Principle of Trap Water Dispenser
Loren Cavitation Air Flotation Machine Aerator is An Idea Suspend Solid Water Separation Machine Esp. For oil water separation
Its High Speed Motor will Rotate with High Speed Impeller with Water to Generate Negative Pressure by naturally Absorbing the Normal Air in The Outside Atmosphere thus to generate DN40-80 um Micro Bubble (HRT: 15-30 Seconds ) which will take the suspend solid and oil lifting on the water surface to form Layer Sludge or Scum being Drain Out By Matching Skimmer or Scraper, While the below water will remain clean for next process dealing
Composition of Beverage Dispenser

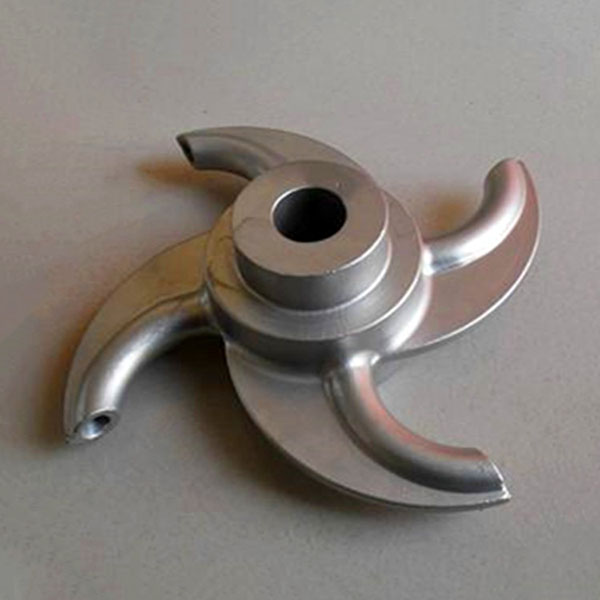

The Micro Aerator consists of a Motor, Motor Base, Fixed Square Plate, Coupling, Central Suction Rotating Shaft, Fixed Rotating Bearing, Outer Cylinder, Oil Seal, Mechanical Water Seal, Aeration Impeller Etc.
Feature of bottom load water dispenser
-Large Scale Oil and Suspend Solid Treated Capacity
-Micro Bubble Lifting Speed is Very Fast
– Little Power Consumption
-Little Noise
-Simple Structure and Easy Maintenance
-Long Working Life
-Can Be Used to Replace Air Compressor or other Dispenser
-Stable Operation
-No Clogging Performance
-Can Choose One Set or Multiple Set for Working

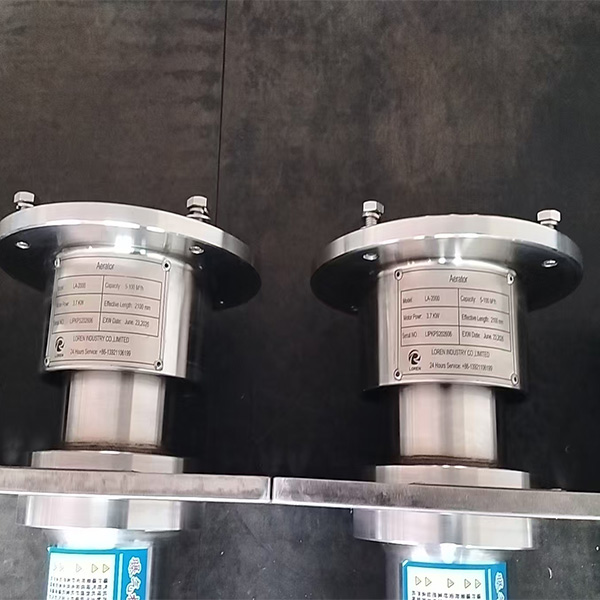

20260626 Loren LA-2000 CAF IAF Aerators five sets Name Plate view
Loren CAF Application Fields of SS and Cod Removal
–Oil Plant and Oil Refinery
-Chemical Industry
-Textile
-Food
-Papermaking
-Printing And Dyeing
-Brewing
-Pharmaceutical
-Tanning
-Sugar Making
-Slaughter
-Municipal
-STP

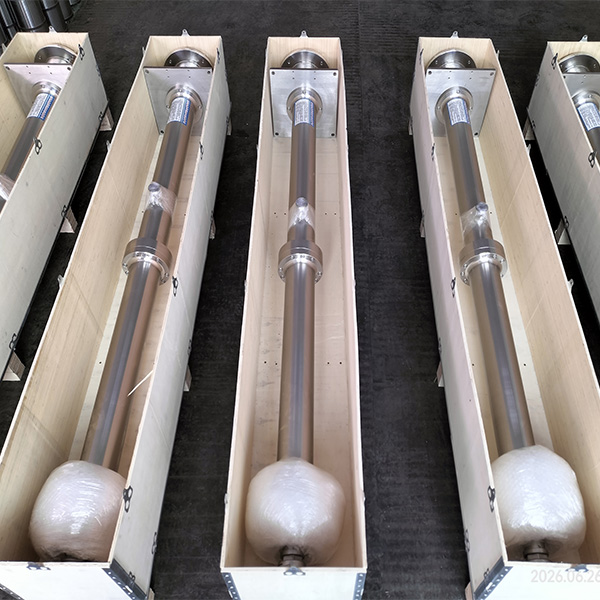

20260703 Loren LA-2000 CAF IAF Aerators Wooden Packing View2
Main Parameter of The Matching olive oil dispenser Aerator
| SN | Model | Power (kw) | Pool Depth （MM） | Water Depth (MM) | Capacity (M3/h) |
| 1 | LA-950 | 1.5 | 1000 | 800 | 5-80 |
| 2 | LA1150 | 1.5 | 1200 | 1000 | 5-80 |
| 3 | LA-1450 | 2.2 | 1500 | 1300 | 5-80 |
| 4 | LA-1750 | 2.2 | 1800 | 1600 | 5-80 |
| 5 | LA-1950 | 2.2 | 2000 | 1800 | 5-80 |
| 6 | LA-2150 | 3.0 | 2200 | 2000 | 5-80 |
| 7 | LA-2350 | 3.0 | 2400 | 2200 | 5-80 |
| 8 | LA-2550 | 3.0 | 2600 | 2400 | 5-80 |
Comment:
- Material Optional: CS, SS304,SS316, Duplex Steel 2205 etcs
- Accept Special Customized Design or Order
