An Injector Is An Idea Small Chemical Dilusion Device Or Mechanism Used To Introduce Or Deliver a Substance, Such As a Medication Or Fuel, Into a System Or Body. It Typically Works By forcing The Substance Through a Narrow Opening Or Nozzle, Often Under Pressure, To Ensure Precise and Controlled Delivery

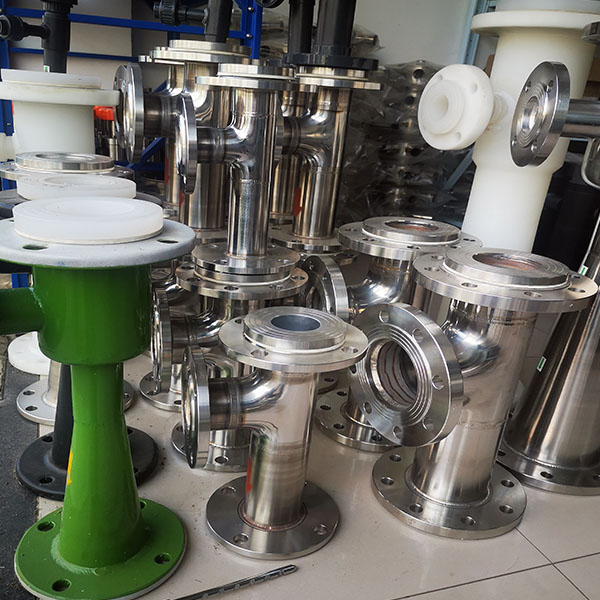

VDF，PTFE, PVC， Steel Structure Multi-Port Chemical Injector,
Multi-Port Acid and Alkali Resistant Injector,
Resolution Injector
Definition of this Acid and Alkali Resistant Injector
An Injector Is An Idea Small Chemical Dilusion Device Or Mechanism Used To Introduce Or Deliver a Substance, Such As a Medication Or Fuel, Into a System Or Body. It Typically Works By forcing The Substance Through a Narrow Opening Or Nozzle, Often Under Pressure, To Ensure Precise and Controlled Delivery.
Feature of the Transforming Injector
-Reasonable Design
-Compact Structure
-Easy Maintenance
-Excellent Chemical Liquid Mixing Performance
-Long Working Life
-Optional Material: FRP, Mild Steel, Stainless Steel, PP, PE etc
-Easy Controlling Solution Concentration by Adjusting Valve
Main Technical Feature
| RW High Pressure Mpa | Resolution Outlet Pressure | Solution Inlet Density | Resolution Outlet Density | |
| NaOH | HCL | |||
| 0.196-0.392 | 0.118-0.196 | 40 | 30 | 2.5-5.0 |
Model Selection and Parameter
| Model | Matching Ion Exchange Diameter(MM) | Regenerated Resolution Outlet flow (M3/H) | Dimension (Length* Height)(MM) |
| LVI-1007 | 1000 | 2.88-5.12 | 321*100 |
| LVI-1511 | 1500 | 7.1-11.1 | 527*122 |
| LVI-2014 | 2000 | 1.4-17.5 | 527*130 |
| LVI-2216 | 2200 | 15.0-23.6 | 521*130 |
| LVI-2518 | 2500 | 19.9-25.2 | 666*143 |
| LVI-3023 | 3000 | 28.8-43.3 | 690*150 |
| LVI-3223 | 3200 | 31.1-48.8 | 824*172 |
| LVI-3525 | 3500 | 34.8-51.1 | 860*173 |
Applicant of the Injector
-Thermal Power Plant
-Fuel or Oil Refining
-Pharmacy
-Environmental Protection Field
-Water treatment Plant
