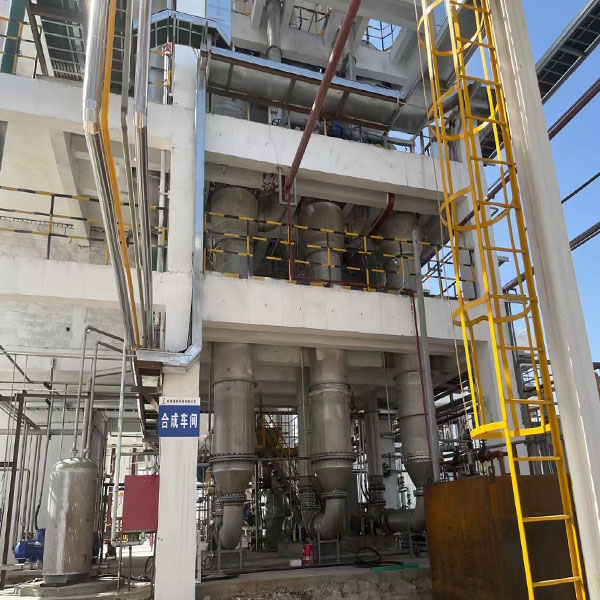

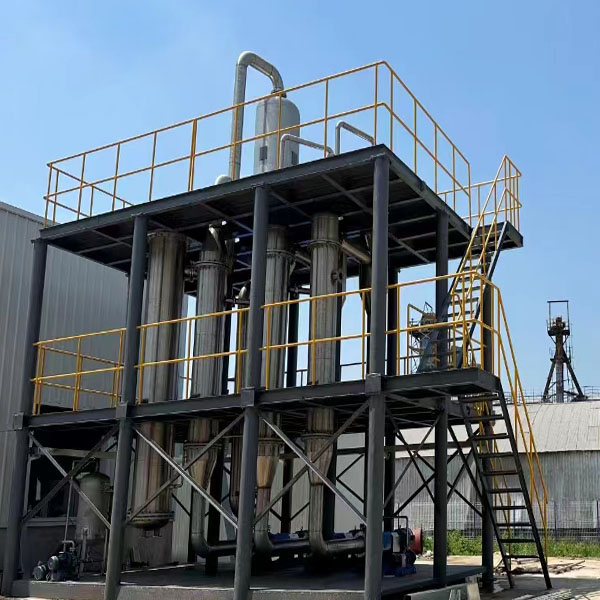

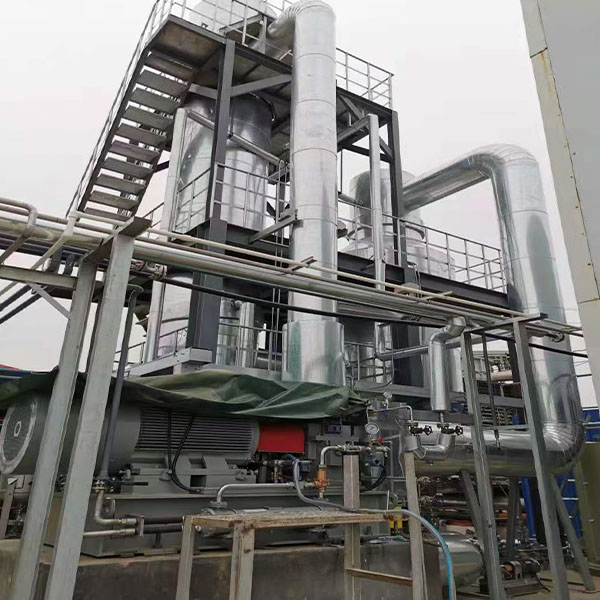

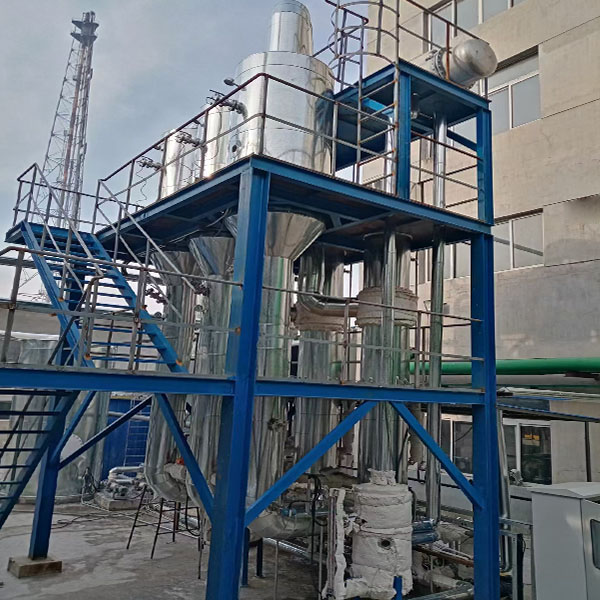

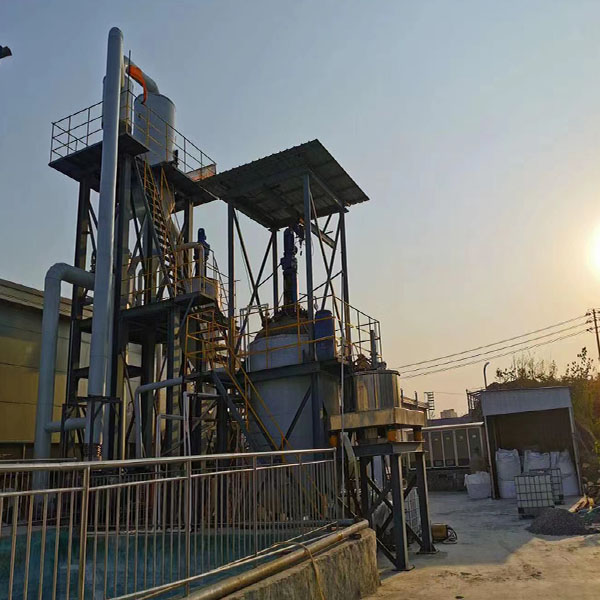

A Multi-Effect Evaporator Is a Combination Of Multiple Single-Effect Evaporators To Form An Integrated Evaporation System By Adopting Low Pressure And Low Temp Technology With Clean Energy To Separate Water Into All Media Of Pharmacy Industry Likewise. According To Different Connection Forms, It Can Be Divided Into Forward Flow, Reverse Flow And Parallel Flow Ones
Working Principal
Taking Advantage of Secondary Stage Large Steam and Latent Heat (Fully Utilized Through Mechanically Compressed and Condensed by A heat Ex-changer) Into Another Evaporator Heating Chamber, Firstly Heated Steam Evaporator Called Single Efficiency , Use First Steam as Heating source can called dual-Efficiency Evaporator, Vise worse to Save Steam Consumption
Composition
It Is Composed Of Heater, Separator, Air Compressor, Vacuum And Circulated Pumps, Operation Platform, Pipeline , Meters ,Valves And e-Box
System Main Feature & System Technical Advantage
-Only Need Little Volume of Steam
-High Heat Transfer Efficiency With Short Heating Time
-Small Power Consumption: About 0.9- 1.2kWh/m3
-Large Operation Load Range:110%-40%
-Running Low Temperature Range: 50-70℃
-Temperature Difference Range:5-8℃
-Compressor Supply Heat with Little Temp. Difference and Little Fouling.
-Reduce Feeding Material Requirement
-No need Condenser or Small Condenser
-Configure CIP Cleaning Pipeline
-Recover the Investment Between 1.5-3 years
-23-70KW.H per Ton Water Evaporation
1.10~1.20 M3 Steam For Single-Effect Evaporator
0.60~0.70 M3 Steam For Dual-Effect Evaporator
0.37~0.46 M3 Steam For Triple-Effect Evaporator
0.30~0.35 M3 Steam For Four-Effect Evaporator
0.24~0.30 M3 Steam For Single-Effect Evaporator
-Fit for the Instability of Water Quality Condition
Applicant
-Sea Water Desalination
-Pharmaceutical Industry
-Fermented Sugar Juice Industry
-Food Processing Industry
-Beverage Industry
-Dairy Industry
-Corn Steep Liquor
-Wine Tank Filtrate
-Fermentation Feed Liquid
-High Concentration Organic
-Chemical Wastewater
-Non-ferrous metal industry
-Smelting
-Steel Mill
-Oilfield
Comment or Design Demand
-When Liquid Concentration Is About 50%, Only The Mvr Evaporator Can Complete It,When The Required Concentration Is 60%, An Extra Flash Evaporation Device Needs To Be Installed.
-All Kind of Steam Compressor Choose as per site process
-MVR Investment is relatively high ,need check as per site condition
-Will Subject To Suitable Solution To Assure Its Maximum Performance Thus To
Solve Such Problems As Boiling Point Increasing,Large Concentration Ratio And Corrosivity From 2nd Steam
Why Us
-We Owns Our Essential Patents
– We Serve for Global groups for many Years Like Foxconn , Taiwan Petroleum, Younger Clothing etc.
-Factory Long History Directly Sales Cost & Fast Delivery
-Fully Combined Various Types Sludge or Oil Mud Dryer Design & Fabrication
-Fully Automatic System with Long Life Work Protection
-Special and Customized Design
-Customer OEM Service & Flexible Adjusting
-Good Quality Control & Training System
-Large Domestic & Overseas Performance Sites
-Within 8 Hours Response Service & After Sales Service
