Definition Of Membrane Bioreactor MBR
The membrane element in the MBR system replaces the terminal secondary sedimentation tank in traditional biological treatment technology, maintains a high activated sludge concentration in the bioreactor, increases the organic load of the biological treatment system, and uses the excellent filtration performance of the membrane separation system to intercept the Activated sludge and macromolecular organic matter can achieve good sewage treatment effects, opening up a new path for the development of new sewage treatment processes.
Feature & Advantages of MBR Assembly
– Excellent Effluent Quality can be directly reused
– Realize Total Separation of HRT and SRT to get rid of Sludge Expansion or unstable outlet water quality
– Bear Large Shock Load Resistance
– Can Stable Run Under 3000-10000mg/L Activated Sludge Density to reduce Sludge Discharge thus to realize zero sludge discharge
– Has Certain Denitrification And Phosphorus Removal Functions due to prolonging sludge Service Time
– Save 30-50% Mounting Room or Replace Secondary Clarifier
– Can be carry on upgrading with existence pool to save RCC room
– PLC automatic Control All The System
Hollow fiber Membrane system
MBR Modules & Membrane Packs
-Material :PVDF
-Average Pore Diameter : 0.01μm-0.1μm,
-It Has Good Hydrophilicity And Strong Anti-Pollution Performance
-It Has Low (0.01-0.05MPa) Filtration Pressure To Save Energy Consumption
-Easy To Clean And Restore Duo To Good Drug Resistance,
-The Membrane Yarn Has High Mechanical Strength And Is Not Easy To Peel
-Easy To Be Installed Due to Modular Design
-Model: 10M2-32M2
PVDF MBR Model Selection
| Model | Membrane Assembly Dimension (mm) | Effective Membrane Area(m2) | Max Capacity (m3/D) | Total Power (KW) |
| LI-MBR-5 | 600*540 | 5 | 2000 | 2.25 |
| LI-MBR-10 | 1000*540 | 10 | 4000 | 2.25 |
| LI-MBR-15 | 1500*540 | 15 | 6000 | 3.00 |
| LI-MBR-20 | 1800*540 | 20 | 8000 | 4.50 |
| LI-MBR-25 | 2000*540 | 25 | 10000 | 5.20 |

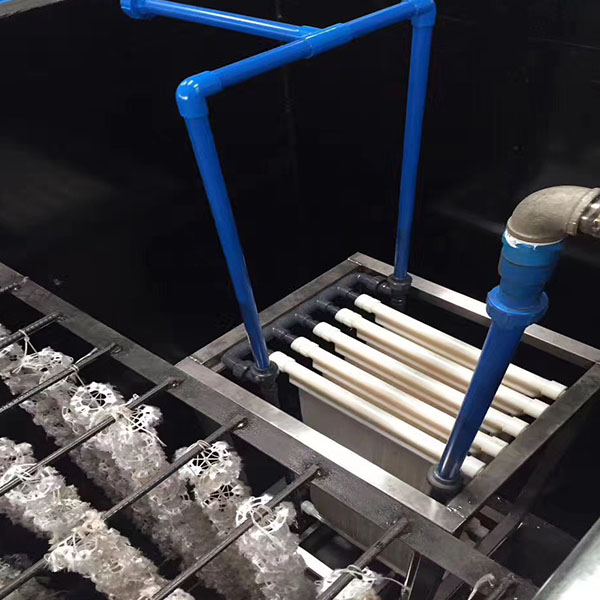

MBR Membrane Reactor and Other bacteria media
PVDF MBR Modular General Data and Run Condition
| Stratification | Joint DN/ Material | DN32/ABS |
| Collection Pipe Size | DN32 | |
| Filter Way | water Pressure Or Suction | |
| OD/ID of Hollow Fiber | 21./3.1mm | |
| Nominal Pore Size | 1.1μm | |
| Fiber Bonding Material | Epoxy Resin | |
| Filtration Efficiency | Suspended Matter＞2um | 98% |
| Microorganism | 92% | |
| Product Water Turbidity | ≤1NTU | |
| Product Water SDI | ≤2.5 | |
| Work Condition | Operation Way | Intermittent Water Production |
| Filtration Method | External Pressure Type | |
| Filtration Pressure | 0.02-0.06Mpa（Negative）
|
|
| Max. Inlet Grain Size | 1-2 mm | |
| Temp. Range | 5-45 ℃ | |
| PH Range | 6-9 | |
| Chemical Flush PH Range | 1-12 | |
| Permit Mineral Oil Content In Raw Water | ≤3mg/L
|
|
| Max. Incoming Residual Chlorine Concentration | 200 mg/L (max.clean agent 5000mg/L) | |
| Recommended Air-Water Ratio | 12:1-24:1
|
|
| Design Water Production Flux | 10-25 M2.h | |
| Sludge MLSS | 3000-8000 mg/l | |
| Maximum Transmembrane Pressure Difference | -0.1 |

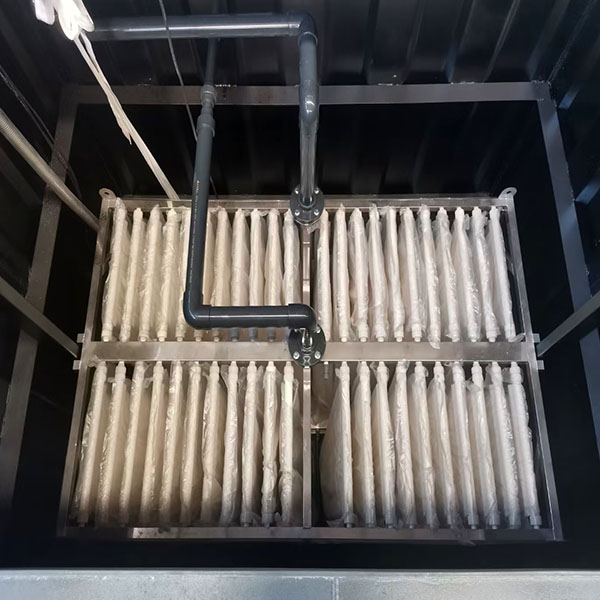

MBR reactor pool pipeline assembly
Design MBR Flux Selection Table
| SN | Waste Water Type | Recommend Flux （L/m2h） | Comment |
| 1 | Municipal Sewage | 16-25 | |
| 2 | General Industrial Wastewater | 12-20 | |
| 3 | Oily Wastewater | 08-15 | Animal &Veg Oil≤50mg/L;
Mineral Oil ≤3mg/L. |
| 4 | Difficult-to-treat Industrial Wastewater | 10-15 | |
| 5 | Garbage Leachate | 6-12 | Membrane Pool ph <8 |
Applicant
-Large Municipal STP Biological Treatment
-Industrial Park Waste Water Treatment
-Pretreatment Before NF or RO System
-Metallurgy Waste Water Treatment
-Surface Water or Groundwater Treatment
-Water Supply Treatment for The Power Plant Industry
-Pharmaceutical Waste Water Disposal
-Other Industrial Waste Water Treatment
