- with no odor discharge
- Loren
- Small Area
- Highly Excellent Fermentation Efficiency
- zero auxiliary materials
- 100%
Definition OF HE Organic Fertilizer Intelligent Fermentation All-In-One Machine
It adopts the principle of aerobic microbial fermentation, which can evaporate the water in the organic matter while reducing organic waste. It is a common livestock and poultry manure treatment equipment. The fermentation tank can obtain excellent organic fertilizer with simple operation and can reach the organic waste harmless level.

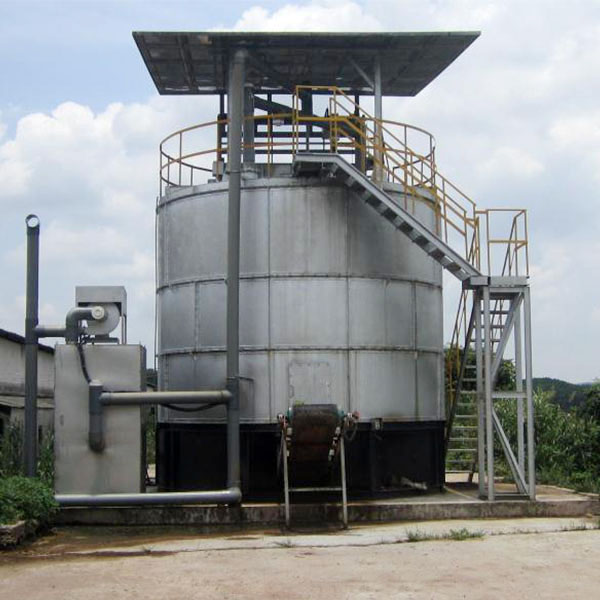

Intelligent High Temperature Aerobic Fermentation Tank
Feature & Advantage
-Closed Fermentation
-Good Fertilizer Efficiency
-Small Area Taken
-Direct feed with zero auxiliary materials added to realize sewage zero
discharge
-Flexible operation with Intelligent continuous feeding and discharge control
-No Secondary pollution by its Complete centralized waste gas and exhausted
or deodorization treatment.
-Good durability: SS material With Corrosion Resistance
-Good economic benefits:Directly Discharged with finished organic fertilizer
-100% Water Cost Saving
Working Principle
Microorganisms use organic matter and residual proteins in livestock and poultry manure to reproduce rapidly under the conditions of temperature, humidity and sufficient oxygen of 50°C to 70°C. During the reproduction process, they consume organic matter, protein and oxygen in the feces, metabolize to produce ammonia, CO2 and water vapor, and at the same time release a large amount of heat, which increases the temperature inside the tank. At the same time, temperatures above 60°C can kill harmful bacteria, pathogens, seasonal eggs and other harmful substances in the feces, while balancing the temperature, humidity and PH value for the survival of beneficial bacteria to meet the survival conditions of beneficial bacteria. With fresh livestock and poultry, Feces are continuously added, and the microbial circulation in the tank continues to multiply, so that fermented organic fertilizer can be continuously produced. At the same time, the deodorization system is used to biologically deodorize the discharged gas to achieve the purpose of harmless treatment of livestock and poultry manure.
Applicant
-Livestock Farms
-Poultry Manure With Low Water Content.
-Dairy Industry
-Drinks Industry
-Biological Engineering
-Microbial Engineering
-Pharmaceutical Industry
-Fine Chemicals Industry
-Other Aquaculture
-Straw Fertilizer
-Food Waste Processing
-Municipal Sludge Treatment
Why Us
– We Serve for Global Groups For Many Years
-Factory Long History Directly Sales Cost & Fast Delivery
-Fully Customized Economic& Compact Design & Fabrication
-Fully Automatic System with Long Life Work Protection
-Customer OEM Service & Flexible Adjusting
-Good Quality Control & Training System
-Large Domestic & Overseas Performance Sites
-Within 8 Hours Response Service & After Sales Service
Model Selection & Specification Table
| Model & Capacity
( M3) |
Total Volume with 50-70% Moisture (m3) | Power
(KW) |
Mixer Speed (RPM) | Hopper Volume (m3) | Outlet Capacity with 30% Moisture |
| LFT-5 | 5 | 7.5 | 3 | 0.6 | 2.5 |
| LFT-10 | 10 | 11 | 3 | 1.3 | 5 |
| LFT-20 | 20 | 18.5 | 3 | 1.3 | 10 |
| LFT-45 | 45 | 24.5 | 3 | 1.5 | 23 |
| LFT-60 | 60 | 32.5 | 3 | 1.5 | 30 |
| LFT-90 | 90 | 43 | 3 | 1.5 | 45 |
| LFT100 | 100 | 50 | 3 | 1.5 | 50 |
| LFT-120 | 120 | 55 | 3 | 1.5 | 60 |
| LFT-200 | 200 | 65 | 3 | 1.5 | 100 |
Comment:The Above Is Only For Reference, Will Subject To Different Condition
Complete Set Of Organic Fertilizer Equipment
After fermentation, manure becomes a nutrient-rich organic fertilizer, which contains both a large amount of organic matter and a high content of three-element nutrients. The organic matter content is 25.5%, nitrogen is 1.63%, phosphorus is 1.54%, and potassium is 0.85%.
Nutrient Analysis Of Organic Fertilizer Raw Materials: (%)
| Name | Organic Matter | Nitrogen | P2O5 | K2O |
| Human Feces | 19.0 | 1.04 | 0.5 | 0.37 |
| Pig Manure | 13-15 | 0.6 | 0.4 | 0.14 |
| Cow Dung | 18-21 | 0.32 | 0.21 | 0.1 |
| Sheep Manure | 24-27 | 0.65 | 0.47 | 0.23 |
| Horse Manure | 21 | 0.8 | 0.6 | 0.8 |
| Chicken Manure | 25.5-29.6 | 1.63 | 1.54 | 0.85 |
| Duck Droppings | 20 | 1 | 1.4 | 0.6 |
| Rapeseed Cake | 75-78 | 4.98 | 2.65 | 0.9 |
| Soybean Cake | 75-79 | 6.3 | 0.92 | 0.12 |
| Cottonseed Cake | 76 | 4.1 | 2.5 | 0.9 |
| Castor Cake | 78 | 4 | 1.5 | 1.9 |
| Sesame Cake | 75-80 | 6.69 | 0.64 | 1.2 |
| Peanut Cake | 75-80 | 6.39 | 1.1 | 1.9 |
| Chicken Feathers | 70-80 | 8.26 | ||
| Pig Hair | 70-80 | 6.6 | ||
| Straw Nutrients | ||||
| Straw | Organic Matter | Nitrogen | P2O5 | K2O |
| Wheat Straw | 81.1 | 0.4 | 0.22 | 0.63 |
| Rice Straw | 78.6 | 0.63 | 0.11 | 0.85 |
| Corn Stalks | 80.5 | 0.75 | 0.4 | 0.9 |
| Cotton Stalk | – | 0.92 | 0.27 | 1.74 |
| Soybean Straw | 82.8 | 1.31 | 0.31 | 0.5 |
Organic Fertilizer Standards
| Project | Index |
| Organic Matter Content (Dry Basis)/Percent ≥ | 45 |
| Total Nutrients (N+P2O?+K2O) Expressed On Dry Basis/% ≥ | 5.0 |
| The Mass Fraction Of Moisture (H2O) c/Percent ≤ | 30 |
| Ph | 5.5-8.5 |
| Ascaris Egg Mortality f/Percent ≥ | 95 |
| Coliform Value f ≥ | 10 |
Bio-Organic Fertilizer Standards
| Project | Powder | Granules |
| Effective Number Of Viable Bacteria (Cfu) Billion/g≥ | 0.20 | 0.20 |
| Organic Matter (On a Dry Basis) Percentage ≥ | 40.0 | 40.0 |
| Moisture Percentage ≤ | 30.0 | 25.0 |
| Ph Value | 5.5～8.5 | 5.5～8.5 |
| Fecal Coliforms/g≤ | 100 | |
| Round Worm Mortality ≥ | 95 | |
| Validity Period Months | 6 | |
